Ruizhou apparel cutting machine with knife cutting, not by laser. So it causes no burning to the materials. No smell. Ruizhou CNC computer control and servo motor, especially Ruizhou independent developed system ensure good cutting quality.
Ruizhou fabric cutting machines achieved zero manual cutting, automatic and intelligent cutting in garment industry. Ruizhou digital cutting machine achieved integrates functions of checks and strips fabric cutting, printed fabric matching, collar cutting.
1. Ruizhou fabric sample cutting machine suitable for apparel cutting and symmetric materials cutting. 2. Ruizhou cnc cutting machine automatic received layers'data from software. Two kinds of oscillating cutting tools for single or multi layer fabric cutting respectively.

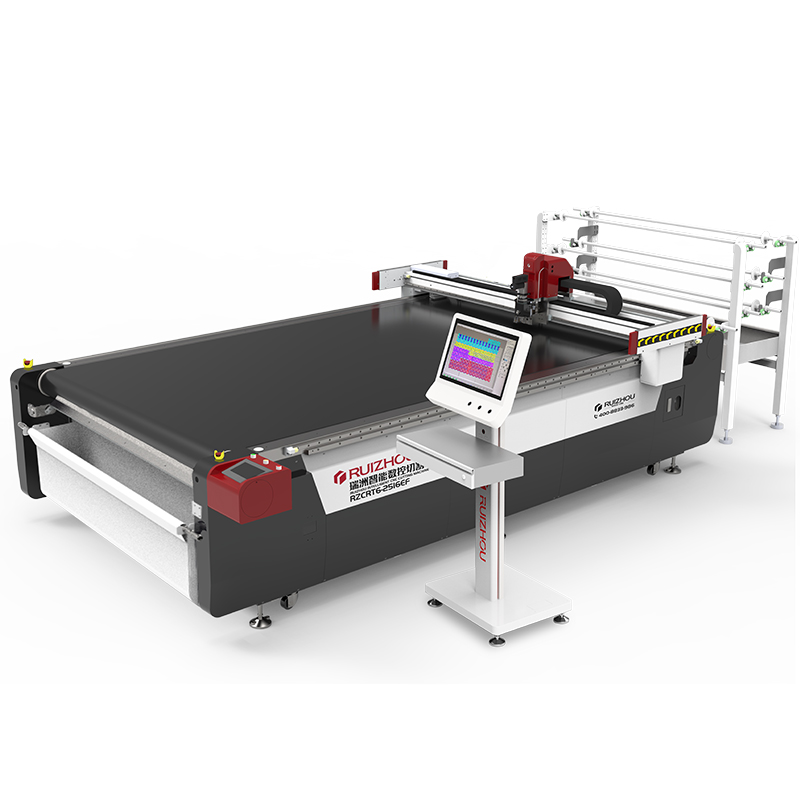

RUIZHOU CNC Carton Cutting Machine is specialized in carton, box, packaging making, especially for samples making and small production. Below is the details of CNC Carton Cutting Machine.
| Model | RZCRT5-2516EF | ||

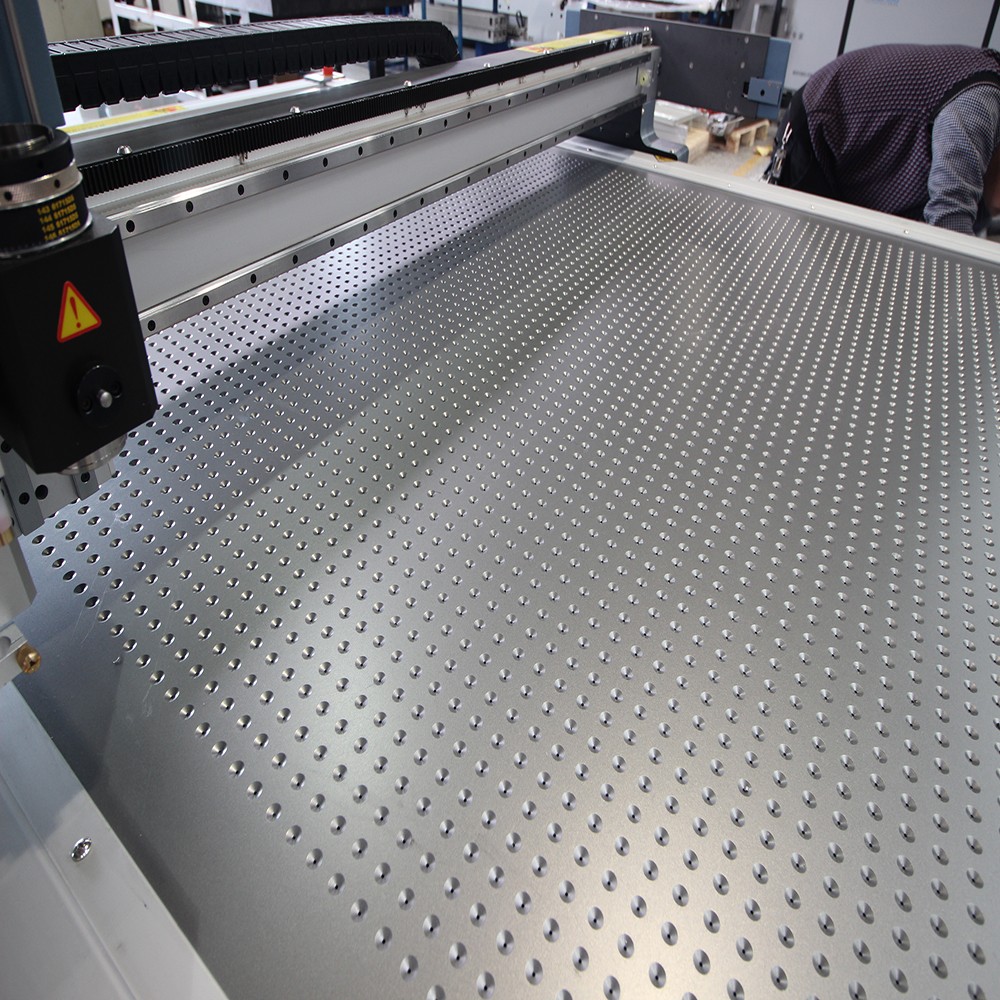

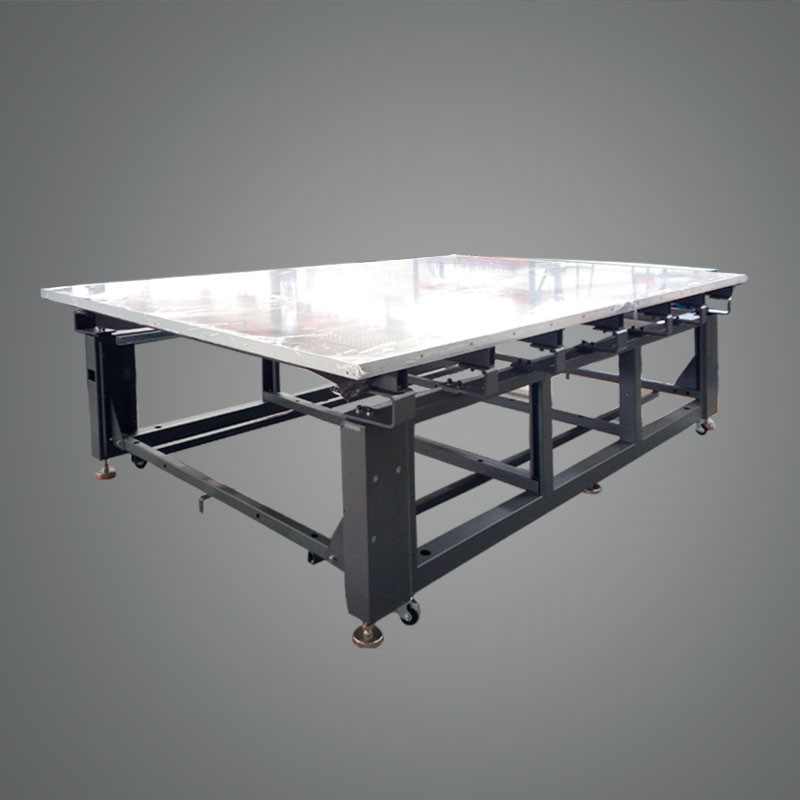

| Our Advantage | 1.A whole piece aluminum platform. 2.Welding stable machine structure. 3.Gear rack & Screw lever. 4.Safety device. 5.Fast and convenient tools changing. | ||
| Effective working area | 2500x1600mm | ||
| Cutting speed | 100-1200mm/s | ||
| Applicable thickness | 0.1mm-25mm (can be up to 50mm according to your materials) | ||
| Cutting Materials | Cloth, textile, fabric, PVC, PU, Car mats etc. | ||
| Tools | Oscillating cutting tool | ||
| Hobbing cutter, millin knife, creasing wheel, punching tool. (optional) | |||
| Marking pen | |||
| Material fixing method | Divisional vacuum absorption | ||
| Mechanical resolution | 0.07mm | ||
| Software resolution | 0.025mm, 0.01mm, 0.1mm (optional) | ||
| Interface of transmission | Net port | ||
| Command system | HP-GL and GP-GL compatible formats | ||
| Digital Control Panel | Liquid crystal display and touching button | ||
| Transimission Materials | Combine use of screw rod, aluminum rack and imported synchronous belt to guarantee higher accuracy and durability. | ||
| Motor | Servo motor | ||
| Air pump power | 9KW | ||
| Machine Working Voltage | AC 220V ± 10%, 50HZ | ||
| Air Pump working Voltage | AC 380V ± 10%, 50 HZ | ||

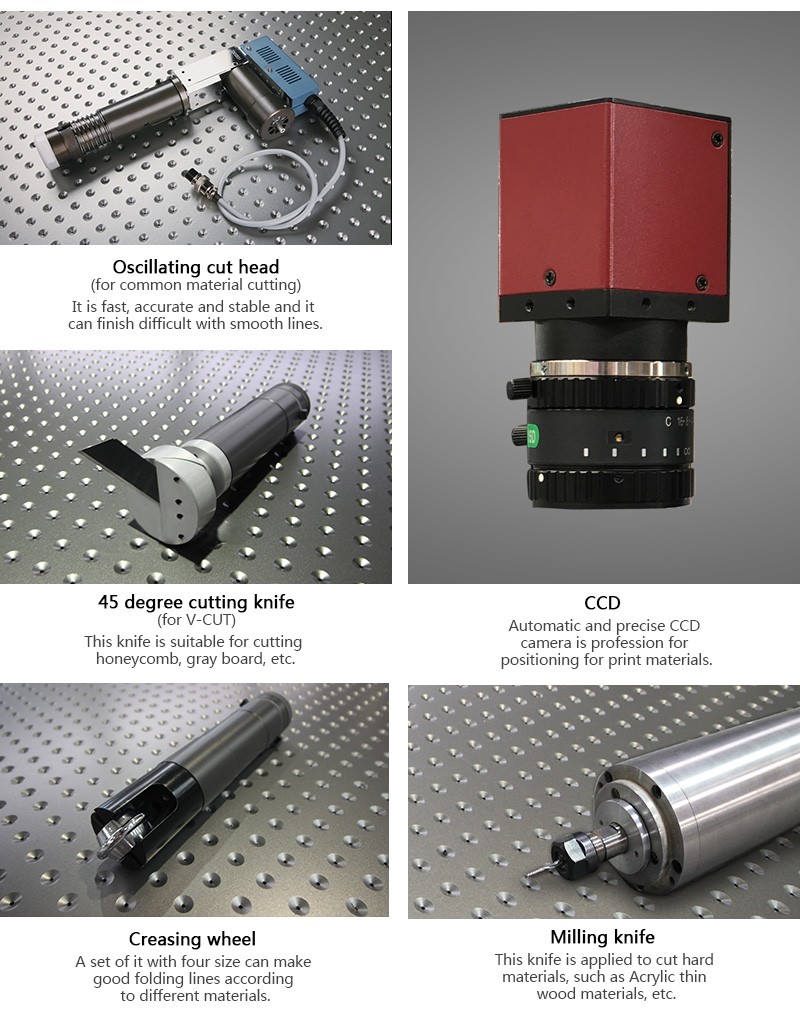

The Tools and Functions of CNC Carton Cutting Machine:
1. Oscillating knife:
It is fast, accurate and no burning nor smell.
2. Creasing wheel:
A set of creasing wheel with four different sizes can make good folding lines according to your different materials.
3. 45 degree cutting knife:
This is special for V groove making when it comes to materials like honeycomb board, gray board and other relatively thicker materials.
4. Milling knife: This is specialized for Acrylic and thin wood material cutting.
5.CCD: camera, professional for positioning for print materials. Automatic and precise.
Feature:
1.Accurate
High requirement of ourselves and persistent striving for excellent, lead to high accuracy. With our laser location device and other elaborate devices the cutting machine meets the cutting precision: 0.1mm to 1mm.
2.Smooth
The Oscillating Cutting Tool assures our cutting machines cut smoothly. Even very complex lines, irregular lines, can be cut smoothly. And this cutting effects can hardly be done by laser cutting machine, die cutter or manual
workers.
3.Diverse
Material -- It can cut nearly all of soft materials and some hard materials.
The Cutting thickness -- 0.4mm to 55mm, even larger, according to the material and your requirement.
Function -- complete cutting, half cutting, dot cutting, V- cutting, line folding, marking.
4.Delicate
The cutting machine is able to cut complex patterns with high precision and repeating precision.
| Model | Cutting Size | Cutting Head & Cutting Arm | Feeding (Rolling) System |
| RZCRT5-1510E | 1400mm x 1000mm | 1 & 1 | No |
| RZCRT5-1813E | 1800mm x 1300mm | 1 & 1 | No |
| RZCRT5-2516E | 2500mm x 1600mm | 1 & 1 | No |
| RZCRT5-2516EF | 2500mm x 1600mm | 1 & 1 | YES |
| RZCRT5-3016E | 3000mm x 1600mm | 1 & 1 | No |
1.All the models have one standard cutting head. With a group of different knives, hobbing cutter, pinch roller and pen. It can do common cuttings for many different materials, creasing and marking.
2.For all the cutting models one more optional cutting head can also be added according to your need. It will add three more functions: mill-cuting, v-cutting and punching.
3.Some big or long cutting machines, like RZCRT5-2516EF, can be equiped with an automatic feeding system.
Customer Collaboration:
excellent product quality and perfect service for us won the unanimous trust of customers at home and abroad.
Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.
RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves the realization of the confluence of informatization and industrialization.
We have rich experience in Foreign Trade.
RUIZHOU is founded in 1995, we have more than 30 years experience for cnc cutting machine. Our Boss Mr. Guo is in this industry since 1990. GUANDDONG RUIZHOU TECHNOLOGY CO., LTD. Is registered in 2004, as a new image to be in CNC Cutting Machine industry.
We are a professional and famous manufacturer of cnc cutting machine in China, which has more than 30 years experience, named RUIZHOU.
Ruizhou cutting machine can cut different kind of soft materials. And it is applied in different industries, such as shoes, bags, garment, carton boxes, composite materials, automotive industries, etc.
1.Please inform us what materials do you cut and your materials's size(width and length). We will recommend you suitable model according to your materials texture and size. 2.And it is appreciate if you can send us some materials for trial cutting, we will record cutting videos for your reference 3.If it is possible, welcome to visit our company and factory.
1.We are professional in cnc cutting machine more than 30 years experience, the stability and service is worth your trust; 2.Some of our technician with more than 30 years experience, some of them can speak English fluently; 3.All the machine will be tested final checked before shipping to ensure the stability, and we send video to you for confirmation.
It is flexible, when luckily there is stock or newly improved models or produced for exhibitions worldwide, you can get it very soon. 1> Normally, our delivery lead time is around 10 to 20 days for main cutting machine in standard. 2> If change some settings, or several sets orders to form production line, lead time is about 20-30 days. 3> For some special request or solution, we will communicate with production dept. firstly before we confirm delivery time to you. We hope you catch time to order in advance, not in a hurry, so we can have more time to debug strictly in factory for you.
The warranty is 1 year, but not including the easy-worn spare parts, such as blade, mat, etc. To tell you honestly, during these years, we have been improved a lot for durability of machine from frame to function, many old clients reorder new RUIZHOU machines with old machines running normally even after 6 to 10 years! You can enjoy whole lift maintenance and technical consultant, support!
90% of our electrical components are originally imported, in order to make sure the service life of machine and stability. The configuration detail shall be shown in our quotation. All the configuration is set more reasonably after all these years' practical experience.
If you buy our machine, we will provide free installation and training.
We process CE and ISO certificates.
