Ruizhou apparel cutting machine with knife cutting, not by laser. So it causes no burning to the materials. No smell. Ruizhou CNC computer control and servo motor, especially Ruizhou independent developed system ensure good cutting quality.
Ruizhou fabric cutting machines achieved zero manual cutting, automatic and intelligent cutting in garment industry. Ruizhou digital cutting machine achieved integrates functions of checks and strips fabric cutting, printed fabric matching, collar cutting.
1. Ruizhou fabric sample cutting machine suitable for apparel cutting and symmetric materials cutting. 2. Ruizhou cnc cutting machine automatic received layers'data from software. Two kinds of oscillating cutting tools for single or multi layer fabric cutting respectively.

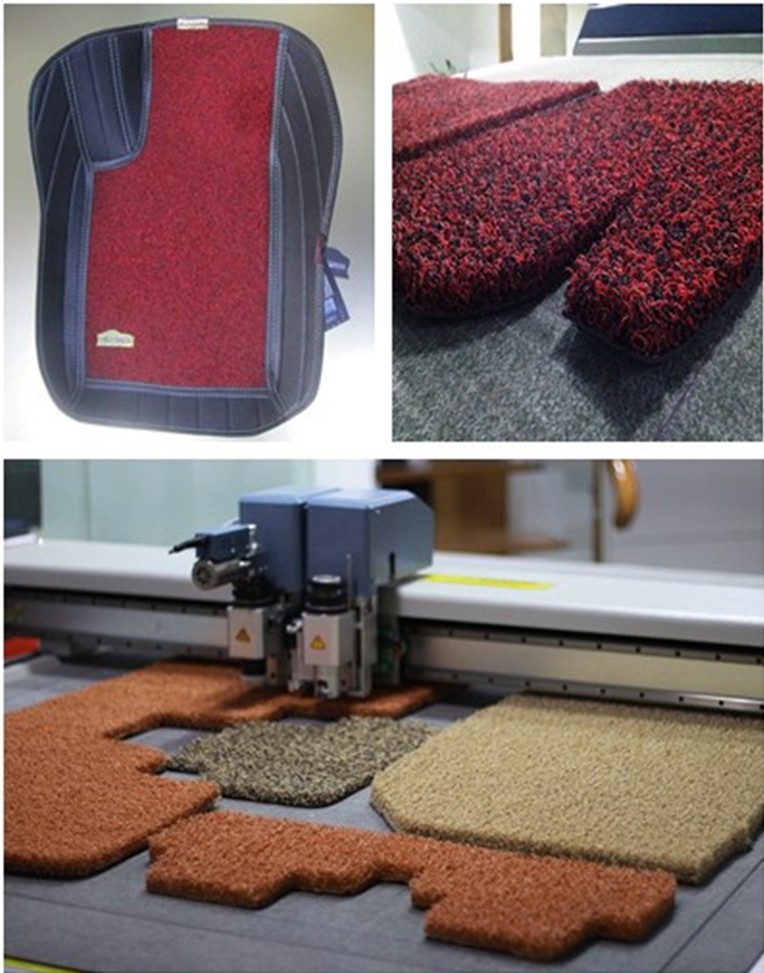

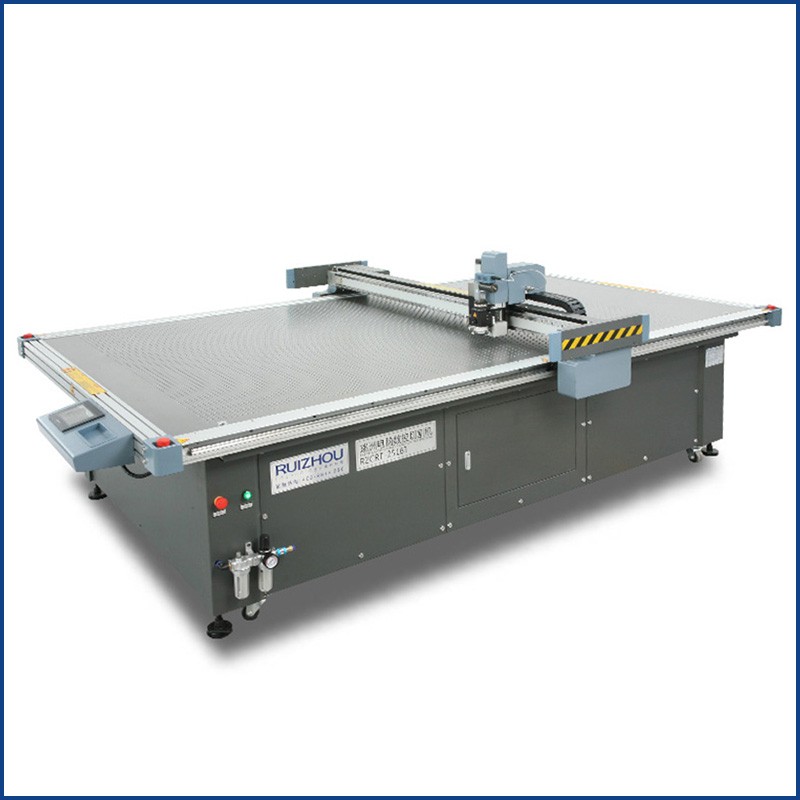

RUIZHOU RZCRT5-2516T cnc cutting machines are specially designed for car mats cutting. They are often used for PVC car mat, PU car mat, fabric car mat, car seat, trunk mat cutting.
RZCRT5-2516T cnc cutting machine cuts with vibrating knife. It causes no smell or burn in the working process. And it is abvanced and user-friendly.
| Model | RZCRT5-2516T | ||

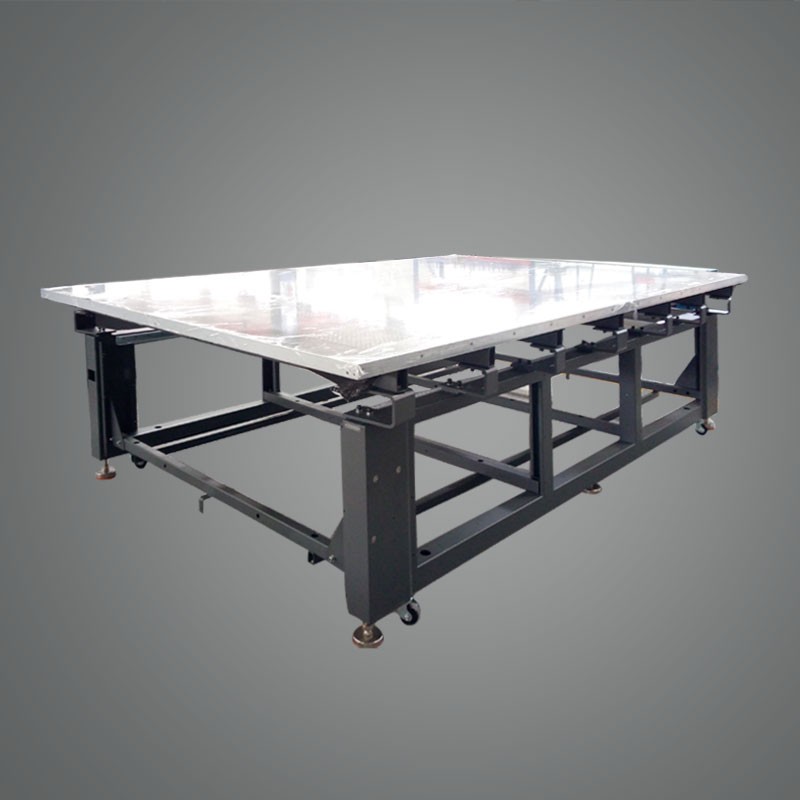

| Our Advantage | 1.A whole piece aluminum platform. 2.Welding stable machine structure. 3.Gear rack & Screw lever. 4.Safety device. 5.Fast and convenient tools changing. | ||
| Effective working area | 2500x1600mm | ||
| Cutting speed | 100-1200mm/s | ||
| Applicable thickness | 0.1mm-25mm (can be up to 50mm according to your materials) | ||
| Cutting Materials | PVC car mat, PU car mat, fabric car mat,ect. | ||
| Tools | Oscillating cutting tool | ||
| Material fixing method | Divisional vacuum absorption | ||
| Mechanical resolution | 0.01mm | ||
| Software resolution | 0.025mm, 0.01mm, 0.1mm (optional) | ||
| Interface of transmission | Net port | ||
| Command system | HP-GL and GP-GL compatible formats | ||
| Digital Control Panel | Liquid crystal display and touching button | ||

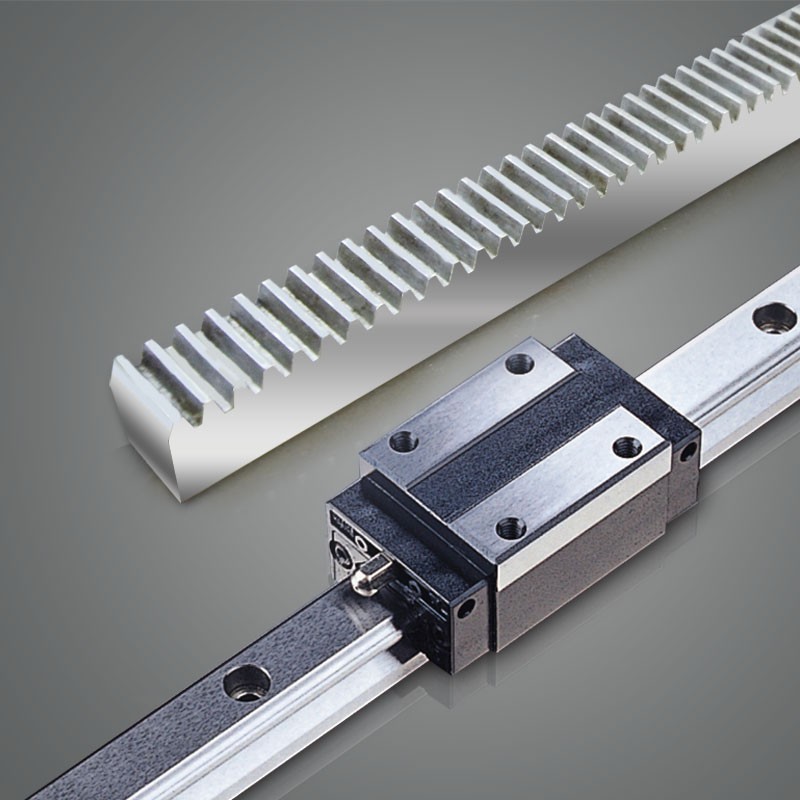

| Transimission Materials | Combine use of screw rod, aluminum rack and imported synchronous belt to guarantee higher accuracy and durability. | ||
| Motor | Servo motor | ||
| Air pump power | 9KW | ||
| Machine Working Voltage | AC 220V ± 10%, 50HZ | ||
| Air Pump working Voltage | AC 380V ± 10%, 50 HZ | ||
The Tools and Functions of CNC Cutting Machine:

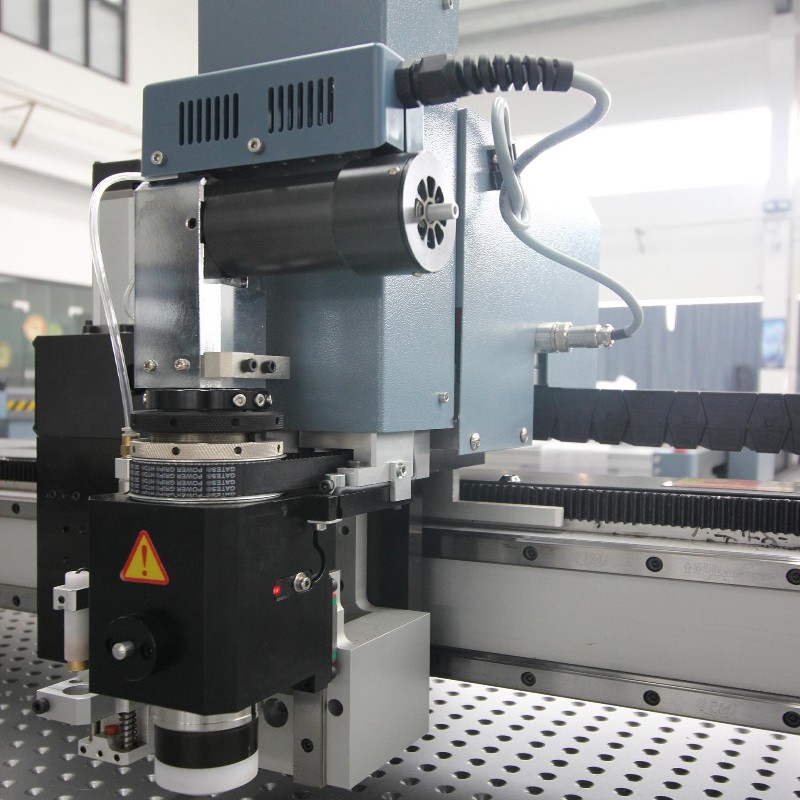

Oscillating knife: It is fast, accurate and no burning nor smell.
Feature:
1.The new model complies with European Standard, whose major components are
imported from Swiss, US,JAPAN etc.
2. Adopting Swiss high speed vibrating cutting tool, available for any depth setting of the
blades.
3. Directly control on all sharp turnings on the machine, convenient and easy to operate.
4. Special safety sensory device meets the European standard.
5. Configured vacuum muffler in order to lower noise to provide a quiet and comfort working environment.

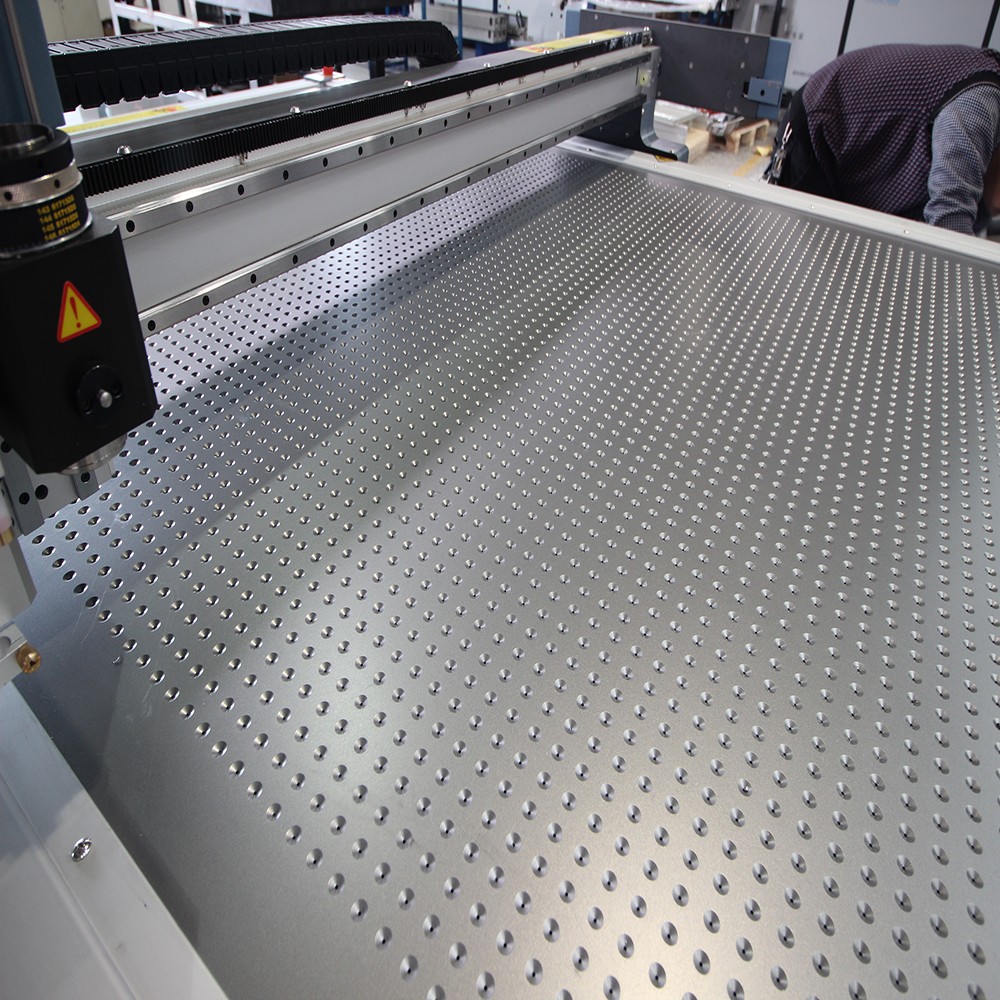

6. Divisional vacuum suction system, more stable and power saving.
RZCRT5-2516T CNC cutting machines are packaged with standard export wooden case, which can guarantee your machines safety.
Customer Collaboration:
Excellent product quality and perfect service for us won the unanimous trust of customers at home and abroad.
Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise,
specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.
RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves the realization of the confluence of informatization and industrialization.
We have rich experience in Foreign Trade.
It will be greatly appreciated if you could advise us detailed requirements in your enquiry. Welcome to contact us for further information.
RUIZHOU is founded in 1995, we have more than 30 years experience for cnc cutting machine. Our Boss Mr. Guo is in this industry since 1990. GUANDDONG RUIZHOU TECHNOLOGY CO., LTD. Is registered in 2004, as a new image to be in CNC Cutting Machine industry.
We are a professional and famous manufacturer of cnc cutting machine in China, which has more than 30 years experience, named RUIZHOU.
Ruizhou cutting machine can cut different kind of soft materials. And it is applied in different industries, such as shoes, bags, garment, carton boxes, composite materials, automotive industries, etc.
1.Please inform us what materials do you cut and your materials's size(width and length). We will recommend you suitable model according to your materials texture and size. 2.And it is appreciate if you can send us some materials for trial cutting, we will record cutting videos for your reference 3.If it is possible, welcome to visit our company and factory.
1.We are professional in cnc cutting machine more than 30 years experience, the stability and service is worth your trust; 2.Some of our technician with more than 30 years experience, some of them can speak English fluently; 3.All the machine will be tested final checked before shipping to ensure the stability, and we send video to you for confirmation.
It is flexible, when luckily there is stock or newly improved models or produced for exhibitions worldwide, you can get it very soon. 1> Normally, our delivery lead time is around 10 to 20 days for main cutting machine in standard. 2> If change some settings, or several sets orders to form production line, lead time is about 20-30 days. 3> For some special request or solution, we will communicate with production dept. firstly before we confirm delivery time to you. We hope you catch time to order in advance, not in a hurry, so we can have more time to debug strictly in factory for you.
The warranty is 1 year, but not including the easy-worn spare parts, such as blade, mat, etc. To tell you honestly, during these years, we have been improved a lot for durability of machine from frame to function, many old clients reorder new RUIZHOU machines with old machines running normally even after 6 to 10 years! You can enjoy whole lift maintenance and technical consultant, support!
90% of our electrical components are originally imported, in order to make sure the service life of machine and stability. The configuration detail shall be shown in our quotation. All the configuration is set more reasonably after all these years' practical experience.
If you buy our machine, we will provide free installation and training.
We process CE and ISO certificates.
