Ruizhou apparel cutting machine with knife cutting, not by laser. So it causes no burning to the materials. No smell. Ruizhou CNC computer control and servo motor, especially Ruizhou independent developed system ensure good cutting quality.
Ruizhou fabric cutting machines achieved zero manual cutting, automatic and intelligent cutting in garment industry. Ruizhou digital cutting machine achieved integrates functions of checks and strips fabric cutting, printed fabric matching, collar cutting.
1. Ruizhou fabric sample cutting machine suitable for apparel cutting and symmetric materials cutting. 2. Ruizhou cnc cutting machine automatic received layers'data from software. Two kinds of oscillating cutting tools for single or multi layer fabric cutting respectively.
Ruizhou CNC cutting machine can apply either vibration knife or pneumatic knife to cut the composite materials samples. This cutting machine is good for sample making and small order production.
Technical Specification:

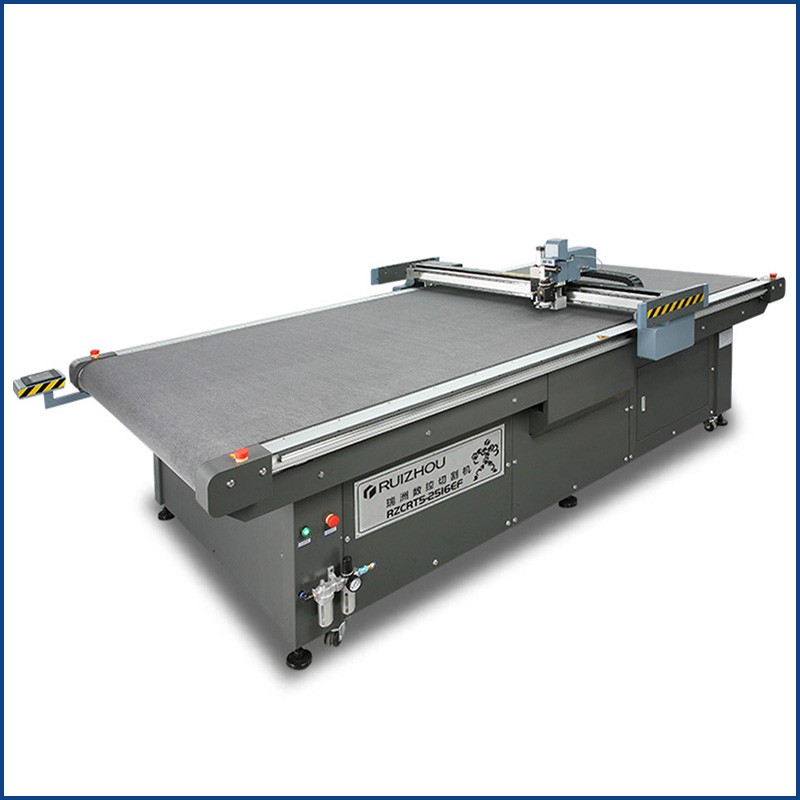

| Model | RZCRT5-2516EF |
| Effective cutting area | 2500X1600MM |
| Cutting speed | 100-1200mm/s |
| Applicable thickness | 0.1mm-50mm, can be adjusted according to the material thickness. |
| Cutting Materials | fiber glass, carbon fiber, sponge,cloth, textile, fabric, PVC, PU, etc. |
| Tools | Oscillating cutting tool |
| Hobbing cutter, milling cutter, creasing wheel, punching tool. (optional) | |
| Marking pen | |

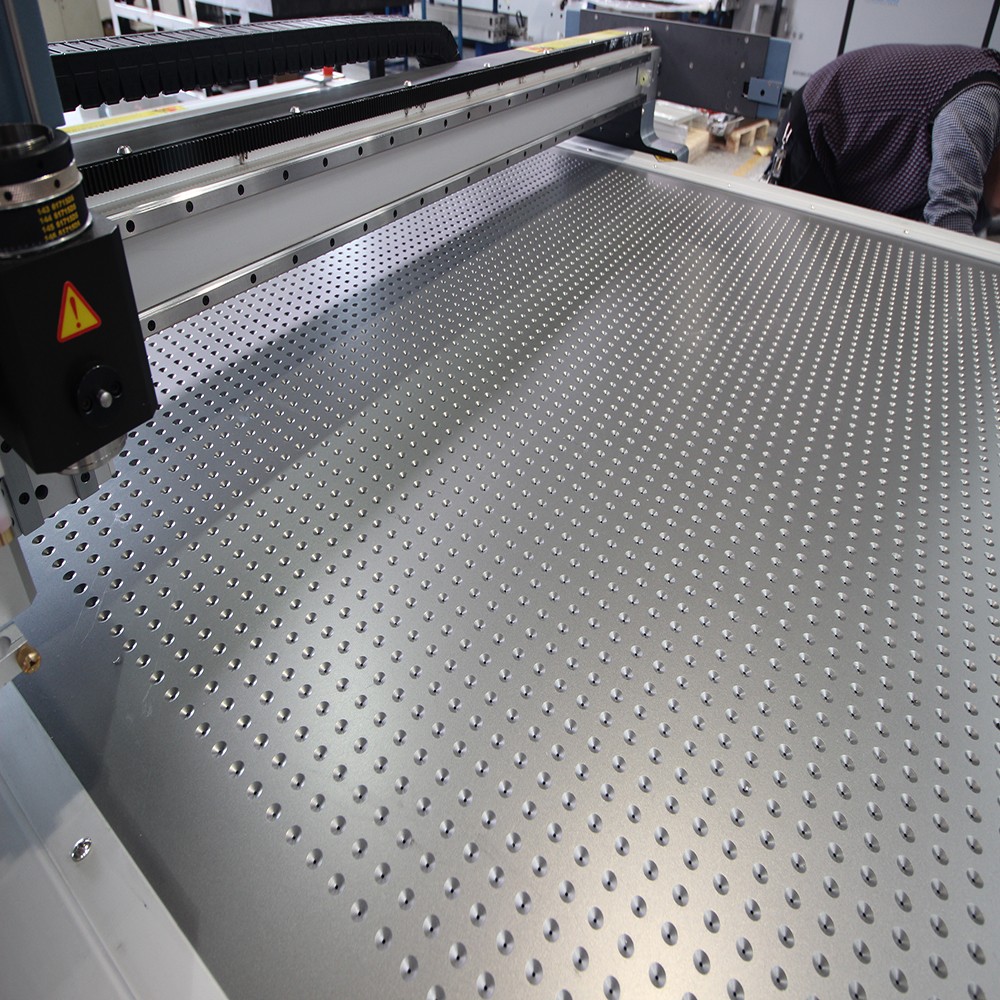

| Material fixing method | Divisional vacuum absorption |
| Mechanical resolution | 0.07mm |
| Software resolution | 0.025mm, 0.01mm, 0.1mm (optional) |
| Interface of transmission | Network port |
| Buffer Capability | Once fast transfer |
| Command system | HP-GL and GP-GL compatible formats |
| Digital Control Panel | Liquid crystal display and touching button |
| Transimission Materials | Imported staight line guide track, synchronous belt |
| Motor | Servo motor |
| Cutting Blade Rotate | Vibrational cutting head 18000r/min, milling spindle motor 4000-1000r/min |
| Machine Working Voltage | AC 220V ± 10%, 50HZ/60HZ |
| Air Pump working Voltage | AC 380V ± 10%, 9KW |

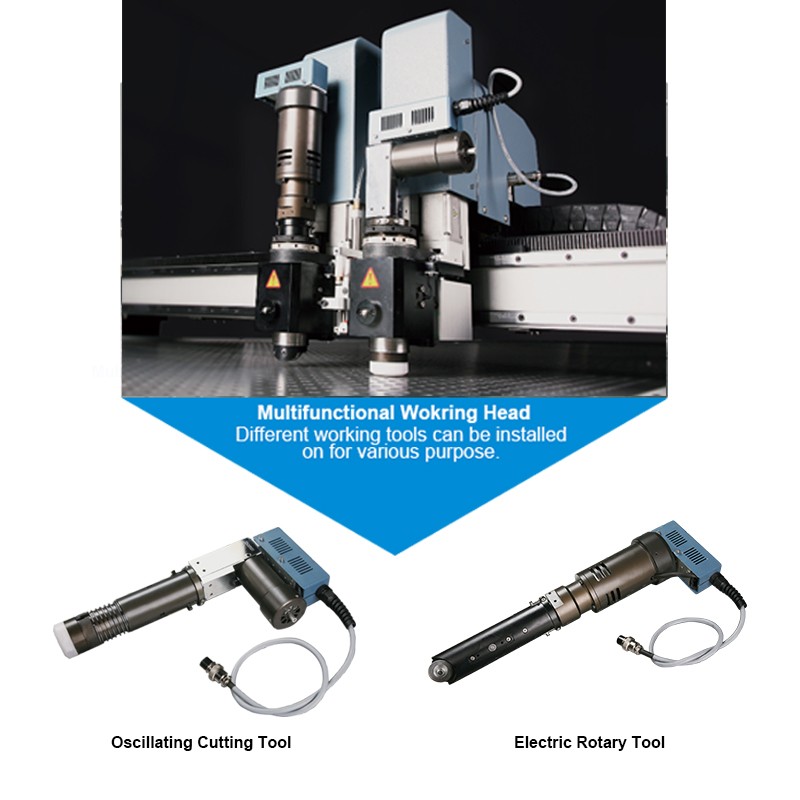

Tools and Functions:
1. Oscillating Cutting Tool for fast cutting.
2. Electric Rotary Tool for fast cutting.
Characteristics:
1. Knife cutting, not by laser. It causes no burning to the materials. No smell.
2. Accurate. Oscillating knife, CNC computer control and servo motor, especially Ruizhou independent developed system enssure good cutting quality.
3. Saving. With Ruizhou automatic Nesting system, the material utilization can be improved by 5%.
4. Convenient. Both flatbed table and auto conveyor table are optional. With auto feeding system, the convenience and efficiency improves a lot.
5. Compatible. Files in DXF and PLT formats are supported. And software which can export DXF or PLT files are compatible with this machine.
6. User friendly. It is easy to learn and a free training can be offered.
We can be responsible for the shipping according to the customers' requirements.
We can also accept and cooperate with your agent if you have shipping forwarder in China.
Guarantee and After-sale Service:
1. One year guarantee for whole machine except of consumables such as knife blade,mat.
2. 24 hours technical support.
3. Calling or door-to-door service.
4. Use friendly-English software, usual manual and detailed videos.
CE, ISO9001 certified,
Design patent certifications,
Utility model patent certifications,
Software copyright certifications.
TOP 10 Footware Machinery Enterprise,
TOP 10 Innovative Enterprise,
CTP(China Torch Plan) Key New High Technology Enterprise.
Foshan Institute of Supervision & Test on Product Quality, etc.
We have rich experience in Foreign Trade.
RUIZHOU TECHNOLOGY has over 25 years in the development and manufacturing of flatbed cutting machines. Our machines four major machine types include:
-CAM SERIES: Pattern cutting plotter which is widely used for cutting paper and plastic samples in the shoemaking industry, garment factories, handbag making etc.
- CRT SERIES: CNC cutting machine which can be applied in the packaging industy for carton box making, shoes factory for upper and insole cutting, carpet cutting, composite material cutting etc.
- CUT SERIES: CNC leather cutting machine which is specially design for cutting genuine leather parts by oscillation knife. They can be used for both sample making and production area for leather goods including footwear, appreal, handbag, furniture, leather gift, leather decoration etc.
- GIC SERIES: CNC cutting machine which can be applied in the apparel industy for shirt,
suit, underwear,skirt,collar making,etc.
RUIZHOU is founded in 1995, we have more than 30 years experience for cnc cutting machine. Our Boss Mr. Guo is in this industry since 1990. GUANDDONG RUIZHOU TECHNOLOGY CO., LTD. Is registered in 2004, as a new image to be in CNC Cutting Machine industry.
We are a professional and famous manufacturer of cnc cutting machine in China, which has more than 30 years experience, named RUIZHOU.
Ruizhou cutting machine can cut different kind of soft materials. And it is applied in different industries, such as shoes, bags, garment, carton boxes, composite materials, automotive industries, etc.
1.Please inform us what materials do you cut and your materials's size(width and length). We will recommend you suitable model according to your materials texture and size. 2.And it is appreciate if you can send us some materials for trial cutting, we will record cutting videos for your reference 3.If it is possible, welcome to visit our company and factory.
1.We are professional in cnc cutting machine more than 30 years experience, the stability and service is worth your trust; 2.Some of our technician with more than 30 years experience, some of them can speak English fluently; 3.All the machine will be tested final checked before shipping to ensure the stability, and we send video to you for confirmation.
It is flexible, when luckily there is stock or newly improved models or produced for exhibitions worldwide, you can get it very soon. 1> Normally, our delivery lead time is around 10 to 20 days for main cutting machine in standard. 2> If change some settings, or several sets orders to form production line, lead time is about 20-30 days. 3> For some special request or solution, we will communicate with production dept. firstly before we confirm delivery time to you. We hope you catch time to order in advance, not in a hurry, so we can have more time to debug strictly in factory for you.
The warranty is 1 year, but not including the easy-worn spare parts, such as blade, mat, etc. To tell you honestly, during these years, we have been improved a lot for durability of machine from frame to function, many old clients reorder new RUIZHOU machines with old machines running normally even after 6 to 10 years! You can enjoy whole lift maintenance and technical consultant, support!
90% of our electrical components are originally imported, in order to make sure the service life of machine and stability. The configuration detail shall be shown in our quotation. All the configuration is set more reasonably after all these years' practical experience.
If you buy our machine, we will provide free installation and training.
We process CE and ISO certificates.
