Ruizhou apparel cutting machine with knife cutting, not by laser. So it causes no burning to the materials. No smell. Ruizhou CNC computer control and servo motor, especially Ruizhou independent developed system ensure good cutting quality.
Ruizhou fabric cutting machines achieved zero manual cutting, automatic and intelligent cutting in garment industry. Ruizhou digital cutting machine achieved integrates functions of checks and strips fabric cutting, printed fabric matching, collar cutting.
1. Ruizhou fabric sample cutting machine suitable for apparel cutting and symmetric materials cutting. 2. Ruizhou cnc cutting machine automatic received layers'data from software. Two kinds of oscillating cutting tools for single or multi layer fabric cutting respectively.

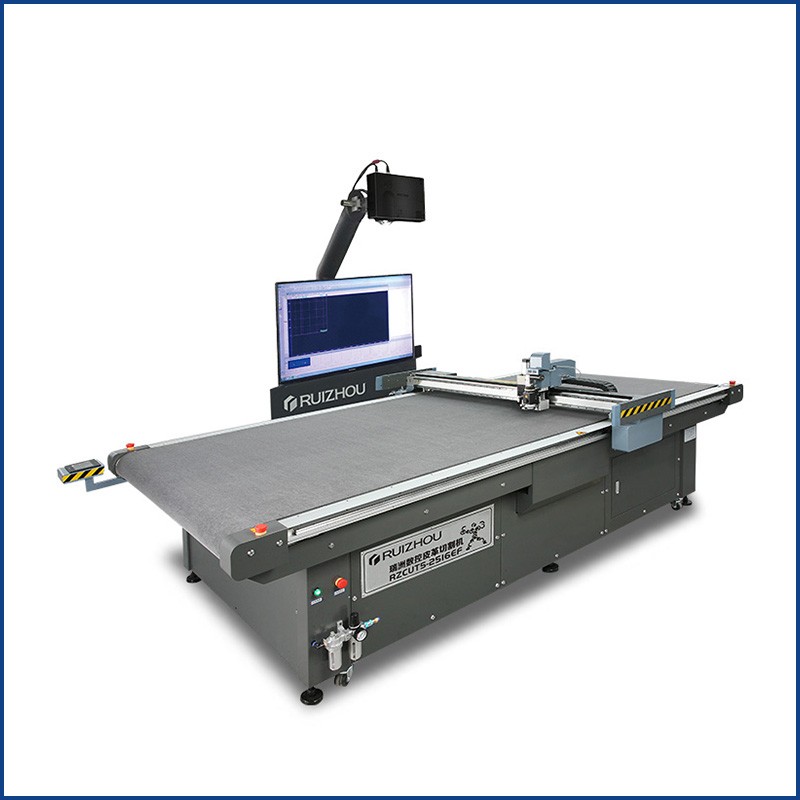

Model: RUIZHOU RZCUT5-2516EF CNC leather cutting machine.

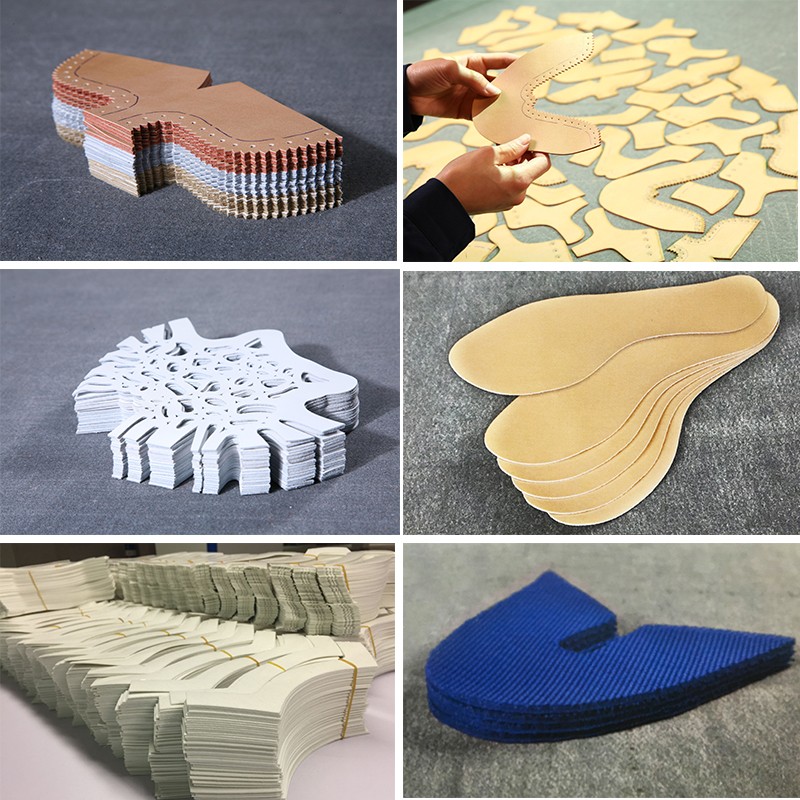

Applicable cutting materials: leather, PU, fabric cardboard, plastic board, Grey board, white board and gasket, etc.
Application: widely used in cloth, shoe, bag, footwear and leather wear industries.
Functions: cutting, drawing and punching.
Equipments: combined cutting head, camera, projectors, automatic nesting software, etc.
Features: multifunctional, working time saving, labor forces saving and it improves the utilization of cutting materials.
Parameters of CNC leather Cutting machine
Model of cutting machine | RZCUT5-2516EF |
Effective working area | 2500mm×1600mm |
Cutting speed | 100-1200mm/s |
Cutting thickness | 0.5-6mm |

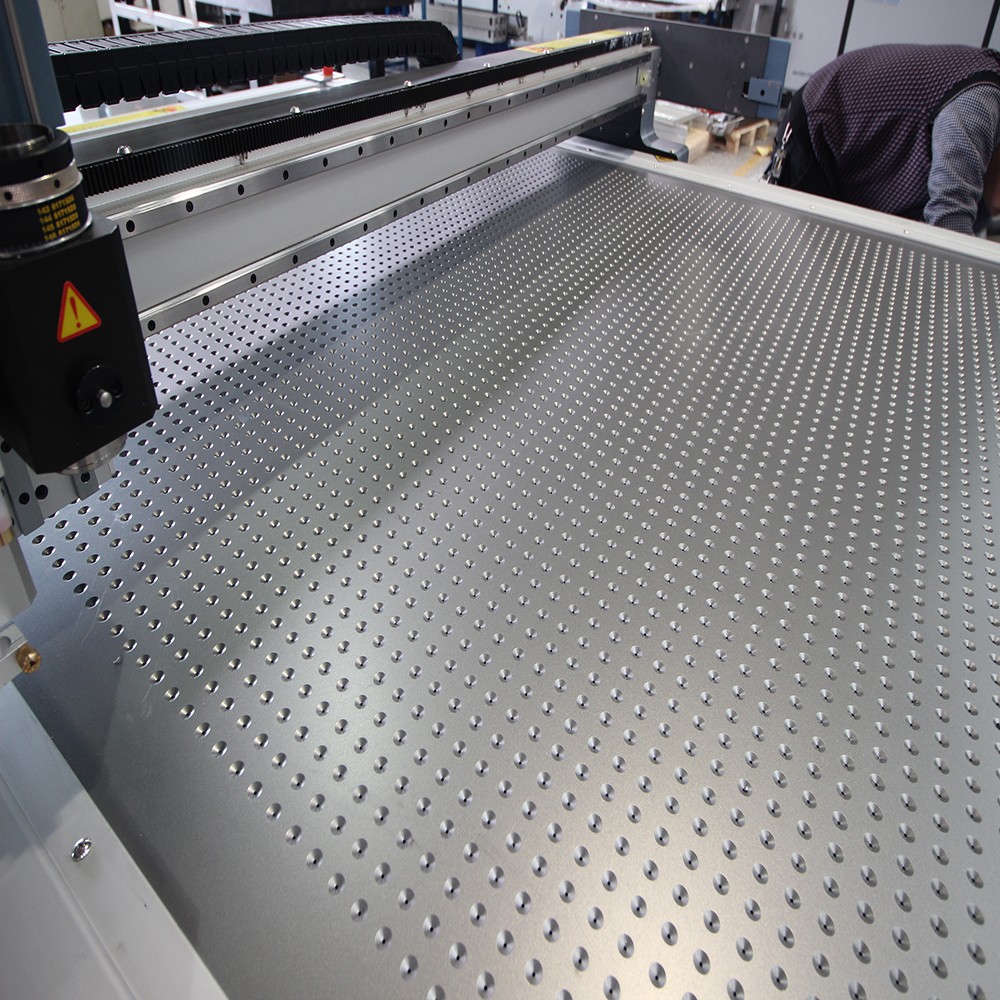

Method of fixing material | Divisional vacuum absorption |
Knife | Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel |
Pen type | Common signing pen, Oil pen, ball-point pen, Silver pen |
Human Machine Interface (HMI) | Touch screen LCD |
Machine resolution | 0.01mm |
Software resolution | 0.025mm |
Interface of transmission | Network port |
| Command system | HP-GL and GP-GL compatible formats |

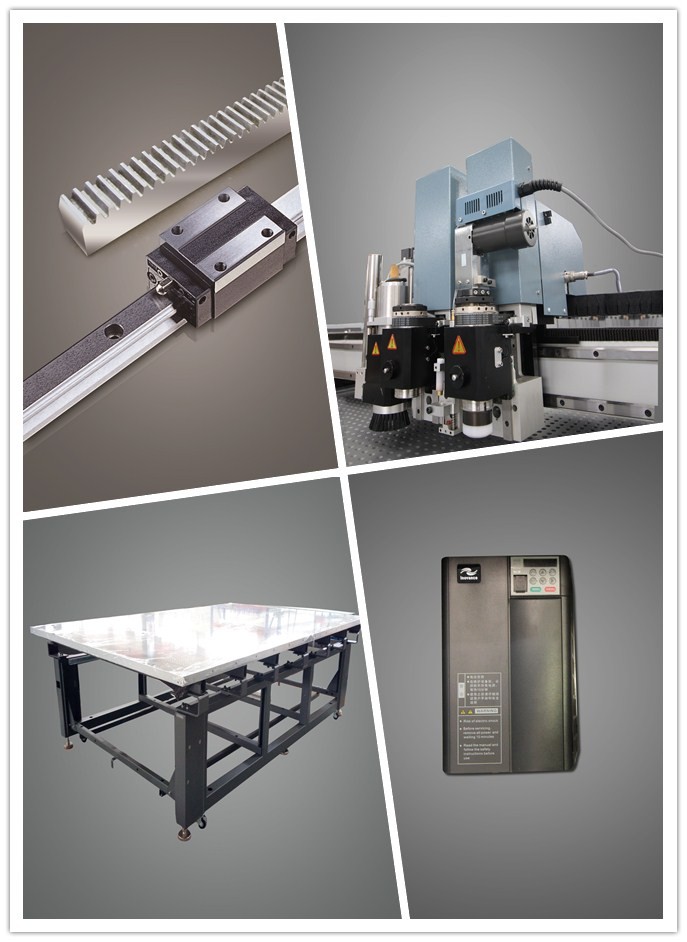

| Gearing | Linear guide and gear rack |
Motor | Servo motor |
Machine Working Voltage | 220V |
Air pump power | 9KW |
Energy saving device | Frequency converter |
| Safety device | Automatic laser device |
Software system | Independent research and development CNC software |
Control system | Cutting table and computer display |

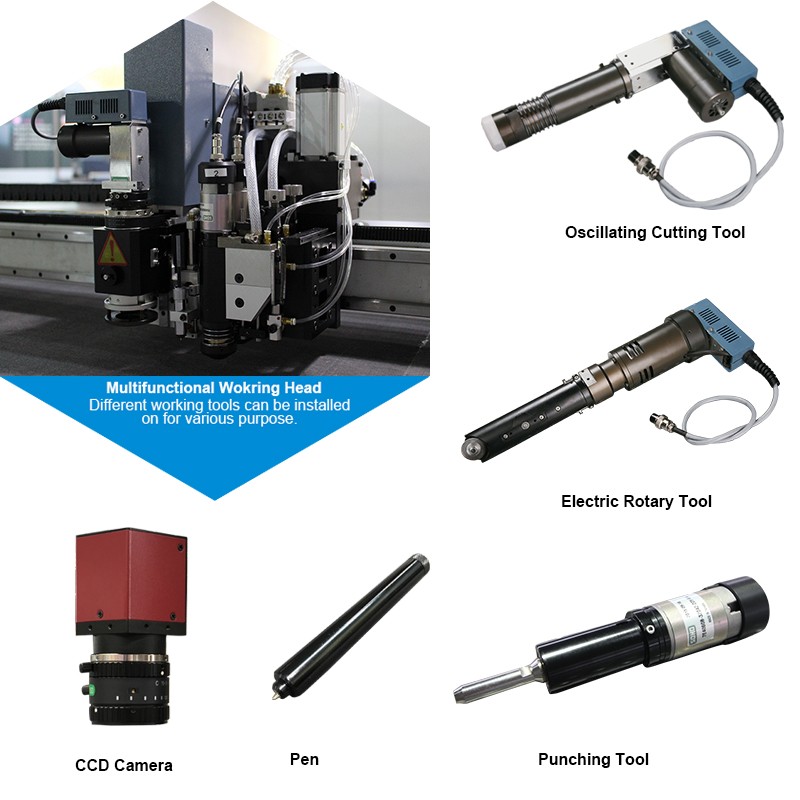

1. Vibrating Knife:
(1) Availability of accurate full-cut and half-cut, ruling out the defects cause by die cutter or laser cutter.
(2) Adoption vibrating knife cutting technology, it can create precise patterns on natural leather,synthetic material,etc.
(3) Completely replace of manual cutting and mould cutting,save material,time and money.
2.PROJECTOR:
Identfy flaws on the materials and capture the contour of the material,save material.
3.PEN:
Doing marks, drawing lines and creating pictures on the material, ball-pen / oil-pen / silver pen are optional.
4.PUNCHES AND BLADE:
Do puching automatically,various types of blades,choose them according to your specific demands.
5.LCD AND EMERGENCY BUTTON DISPLAY:
All you need to do is to operate the mouse to finish your production.Red button is used when some emergencies happen.
Main Steps of Leather Cutting
The CNC leather cutting machines are packaged with standard export wooden case which can guarantee the cutting machines' safety.
Guangdong RUIZHOU Technology Co., Ltd. is a National Torch Plan High-tech Enterprise, specialized in the search, development, sales and technique service of soft material intelligent CNC cutting system.
RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which serves the realization of the confluence of informationization and industrialization, and eventually serves the implementation of the industrial transformation and promotion of Industry4.0 from Made in China to Invented in China.
CE, ISO9001 certified,
Design patent certifications,
Utility model patent certifications,
Software copyright certifications.
TOP 10 Footware Machinery Enterprise,
TOP 10 Innovative Enterprise,
CTP(China Torch Plan) Key New High Technology Enterprise.
etc.
Warranty and After-sales Service:
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company.
3. 24 hours technical support.
4. Calling or door-to-door service.
5. User friendly English software, usual manual and videos.
RUIZHOU TECHNOLOGY has over 25 years in the development and manufacturing of flatbed cutting machines. Our machines four major machine types include:
- CAM SERIES: Pattern cutting plotter which is widely used for cutting paper and plastic samples in the shoemaking industry, garment factories, handbag making etc.
- CRT SERIES: CNC cutting machine which can be applied in the packaging industy for carton box making, shoes factory for upper and insole cutting, carpet cutting, composite material cutting etc.
- CUT SERIES: CNC leather cutting machine which is specially design for cutting genuine leather parts by oscillation knife. They can be used for both sample making and production area for leather goods including footwear, appreal, handbag, furniture, leather gift, leather decoration etc.
- GIC SERIES: CNC cutting machine which can be applied in the apparel industy for shirt,suit,
underwear,skirt,collar making,etc.
Q1: What professional suggestion can you give when I need to buy RUIZHOU cutting machine?
A1: 1)Please inform us what materials do you cut and your materials' size(width and length).
We will recommend you suitable model according to your materials texture and size.
2)And it is appreciate if you can send us some materials for trial cutting, we will record cutting videos for your reference
3)If it is possible, welcome to visit our company and factory.
Q2:How about your cutting machine's certification?
A2:We process CE, ISO and TUV certificates.
Q3:Are you a trader or a manufacturer?
A3: We are a professional and famous manufacturer of cnc cutting machine in China, which has more than
25 years experience, named RUIZHOU.
Q4:What materials can your machine cut?
A4: Ruizhou cutting machine can cut different kind of soft materials. And it is applied in different industries,
such as shoes, bags, garment, carton boxes, composite materials, automotive industries, etc.
Q5: How to use the machine?
A5: If you buy our machine, we will provide free installation and training.
Q6:What after-sales services can your company provide?
A6: We provide one-year free warranty at home and abroad.
RUIZHOU is founded in 1995, we have more than 30 years experience for cnc cutting machine. Our Boss Mr. Guo is in this industry since 1990. GUANDDONG RUIZHOU TECHNOLOGY CO., LTD. Is registered in 2004, as a new image to be in CNC Cutting Machine industry.
We are a professional and famous manufacturer of cnc cutting machine in China, which has more than 30 years experience, named RUIZHOU.
Ruizhou cutting machine can cut different kind of soft materials. And it is applied in different industries, such as shoes, bags, garment, carton boxes, composite materials, automotive industries, etc.
1.Please inform us what materials do you cut and your materials's size(width and length). We will recommend you suitable model according to your materials texture and size. 2.And it is appreciate if you can send us some materials for trial cutting, we will record cutting videos for your reference 3.If it is possible, welcome to visit our company and factory.
1.We are professional in cnc cutting machine more than 30 years experience, the stability and service is worth your trust; 2.Some of our technician with more than 30 years experience, some of them can speak English fluently; 3.All the machine will be tested final checked before shipping to ensure the stability, and we send video to you for confirmation.
It is flexible, when luckily there is stock or newly improved models or produced for exhibitions worldwide, you can get it very soon. 1> Normally, our delivery lead time is around 10 to 20 days for main cutting machine in standard. 2> If change some settings, or several sets orders to form production line, lead time is about 20-30 days. 3> For some special request or solution, we will communicate with production dept. firstly before we confirm delivery time to you. We hope you catch time to order in advance, not in a hurry, so we can have more time to debug strictly in factory for you.
The warranty is 1 year, but not including the easy-worn spare parts, such as blade, mat, etc. To tell you honestly, during these years, we have been improved a lot for durability of machine from frame to function, many old clients reorder new RUIZHOU machines with old machines running normally even after 6 to 10 years! You can enjoy whole lift maintenance and technical consultant, support!
90% of our electrical components are originally imported, in order to make sure the service life of machine and stability. The configuration detail shall be shown in our quotation. All the configuration is set more reasonably after all these years' practical experience.
If you buy our machine, we will provide free installation and training.
We process CE and ISO certificates.
